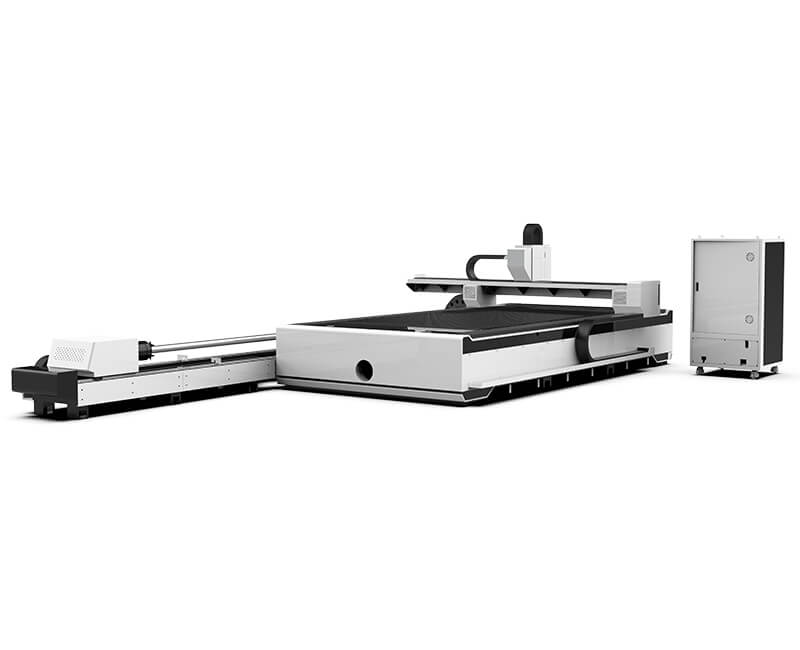

Open Type Sheet And Tube Cutting Machine UM3015M

M SERIES Open Type Sheet And Tube Cutting Machine With Laser Power 1.5KW-6KW.

The M series is a dual-purpose machine, which can cut metal sheets and pipes at the same time. It is a high-performance cutting machine specially designed for comprehensive metal manufacturing. It has a wide range of uses, and the rotating device can hold metal pipes with a maximum diameter of 20-220mm. The standard pipe length is 3 meters or 6 meters, and other lengths can also be customized.

Keep In Touch
Please enable JavaScript in your browser to complete this form.

For more details or the best price, please feel free to contact us by WhatsApp: +86 17854114645 or send an inquiry to E-Mail: info@upmanlaser.com

Double Pneumatic Chucks

Pneumatic self-centering chuck, high clamping accuracy and fast speed.

Intelligent pneumatic jaws, large clamping force, more stable feeding, more precise cutting.

Can reduce pipe shaking and improve cutting accuracy; Maintain center repeat positioning accuracy of 0.05mm after long term of using.

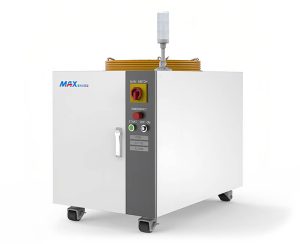

Well-known Fiber Laser Source

Low Energy Consumption: Save energy and protect environment.

Photoelectric conversion rate is up to 30-35%.

Low electric power consumption, it is only about 30%-35% of traditional CO2 laser cutting machine.

Almost free maintenance.

Up to 100000 hours of life time.

Professional Sheet & Tube Cutting System

Using an operating system focused on laser cutting, it is highly integrated and intelligent. Human-computer interaction is more user-friendly, even for green hand, also easy to operate, and one-key switching between pipe cutting and plate cutting. It supports a variety of graphics files, including DXF, PLT, DWG, AI, G-code, IGS (pipe cutting), and supports other brand nesting software.

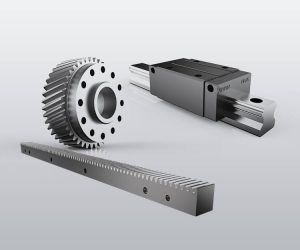

Precision And Efficient Transmission

Extremely precise linear guide, imported or independently researched gear and rack as transmission components. The transmission system is mounted on the machine bed by experienced experts with photoelectric autocollimator or dial indicator, which ensures that the machine is the best regardless of precision and moving speed.

Technical Parameters

ModelUM3015MUM4020MUM6020MUM6025M
Working Area3050*1530mm4050*2030mm6050*2030mm6050*2530mm
Laser Power1.5KW-6KW
Positioning Accuracy±0.05mm
Repeat Positioning Accuracy±0.03mm
Maximum Speed80m/min
Maximum Acceleration0.8G
Electricity Demand380V/50HZ
Pipe Cutting RangeRound Tube: Φ20-220mm Square Tube: Φ20-150mm

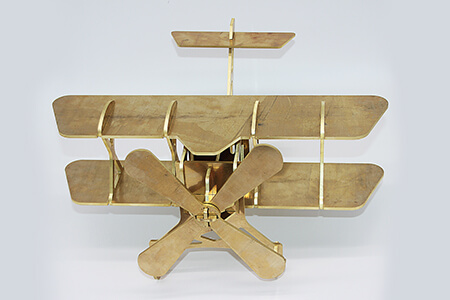

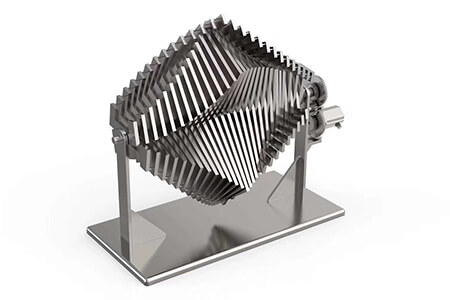

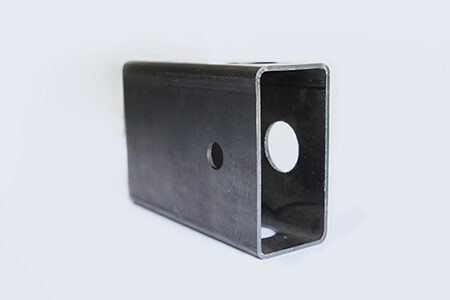

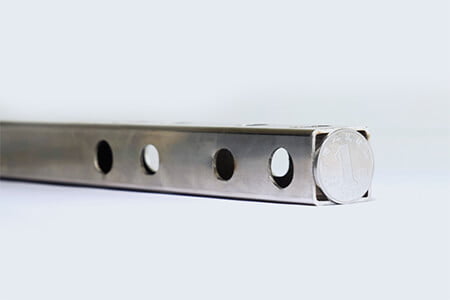

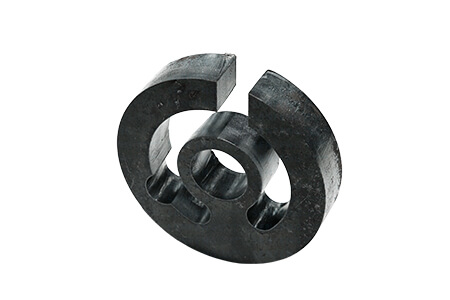

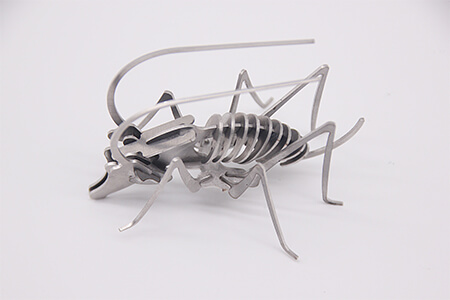

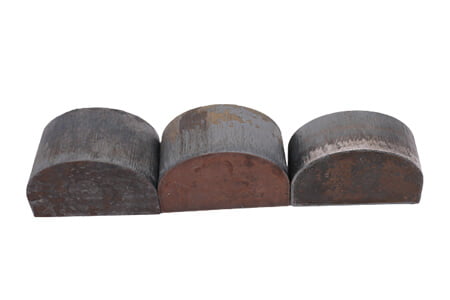

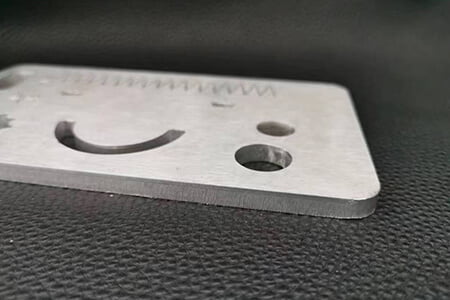

Sample
