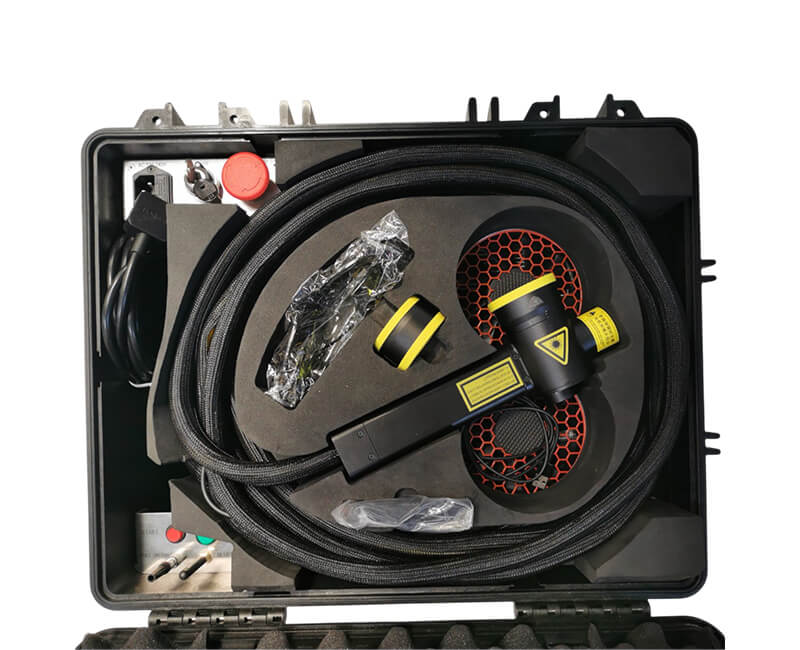

Luggage type of pulse laser cleaner

Main Features

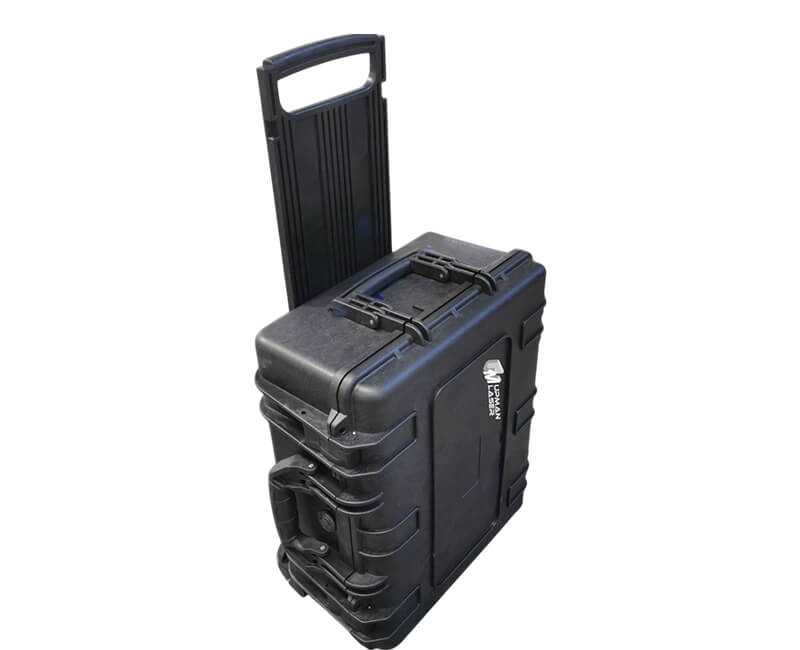

Portable And Small Footprint

Super robust integrated injection molding case, buffer design, stable structure, wear-resistant, shock-proof and drop-resistant

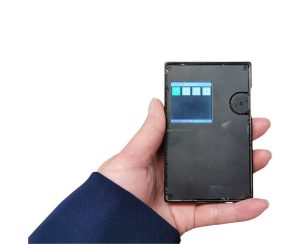

Touch Operation

It has many advantages such as portability and lightweight, flexible to adjust parameters, wireless control, etc. Can effectively remove rust, stains, oil, coating, etc. on the surface of workpieces

Efficient And Maintenance-free

It is suitable for mechanical processing, cultural relic restoration, mold cleaning, food processing, electronic circuit and other industries. It can meet the processing of various workpieces by characteristics of precise positioning and achieve efficient cleaning effect.

Easy Operation

The handheld laser cleaning head has a simple appearance, is compact and light, and can be held for a long time without fatigue. The buttons and handle are integrated into one, making it easy to use.

Efficient Cooling

The laser cleaning head adopts an innovative red light auxiliary focusing design, which can easily find the focus position under different field lenses using red light indication, meeting the auxiliary focus needs in different scenes.

Strength Beam

Relying on the advantages of the MOPA structure of laser source, the Upman laser cleaner has the characteristics of independently adjustable pulse width and frequency. When the pulse width and frequency are changed, it can still maintain a high stable peak power output to adapt to a wider range of cleaning scenarios.

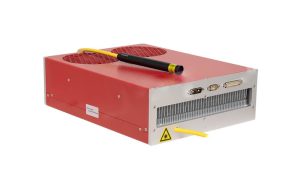

Introduction to Laser

Uses a directly electrically modulated semiconductor laser with perfect laser characteristics and good pulse shape control capabilities. Compared with Q-switched fiber lasers, the pulse frequency and pulse width of MOPA fiber lasers are independently controllable. Through parameter adjustment and matching, it can achieve constant high peak power output and be applicable to a wider range of marking substrates. It uses a lightweight laser output head while maintaining the excellent anti-reflection performance, which has outstanding advantages in handheld or robot laser cleaning.

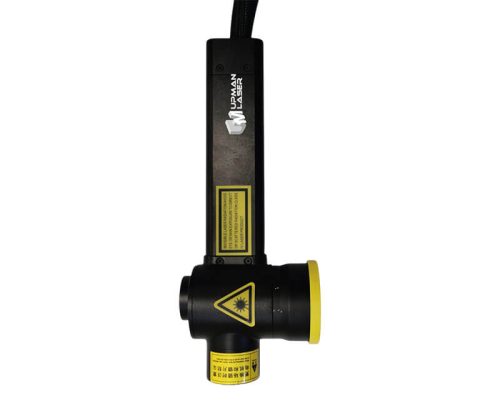

Cleaning Head

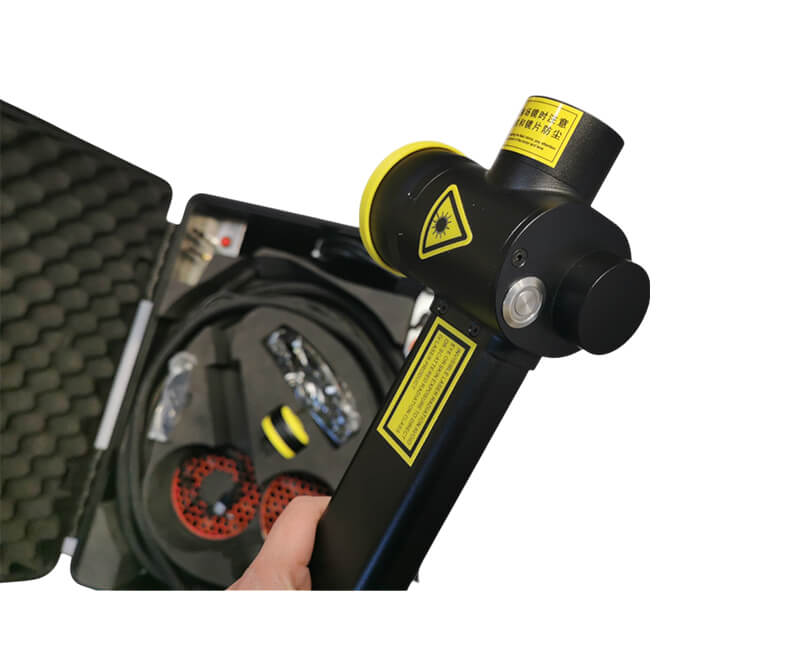

Handheld laser processing head
Light weight laser cleaning head only 750g
Wide cleaning area seam, fast and efficient clean the surface with low cost
Patented red light assisted focusing technology can adjust the focus position according to different scenes

Cleaning System

Easy to operate, flexible to set parameter and control light output, update parameters at any time
7types of cleaning shapes to meet different cleaning requirements (line / rectangular / Round / Sine / text / Spiral / Lissajous)
Equipped with a status prompt interface, it can monitor the laser frequency, power, pulse width, PA, MO, RED, optical path temperature, and TEC temperature status in real time.
It can save 12 cleaning data and automatically set the laser according to the corresponding parameters. The parameter values set in each group of data will be automatically saved.

Machine size

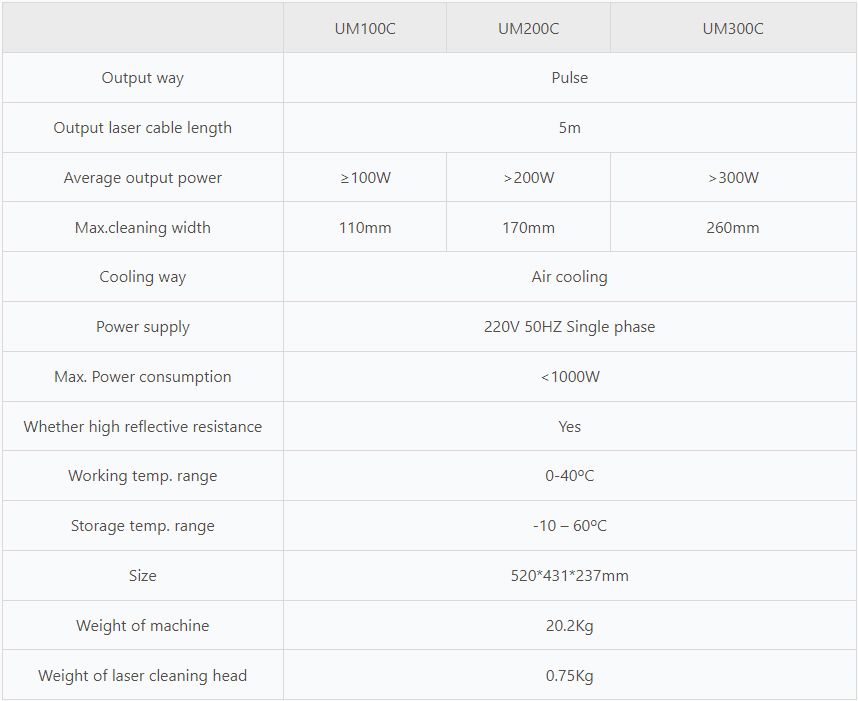

Technical Specifications

	UM100C	UM200C	UM300C
Output way	Pulse
Output laser cable length	5m
Average output power	≥100W	>200W	>300W
Max.cleaning width	110mm	170mm	260mm
Cooling way	Air cooling
Power supply	220V 50HZ Single phase
Max. Power consumption	<1000W
Whether high reflective resistance	Yes
Working temp. range	0-40ºC
Storage temp. range	-10 – 60ºC
Size	520431237mm
Weight of machine	20.2Kg
Weight of laser cleaning head	0.75Kg
