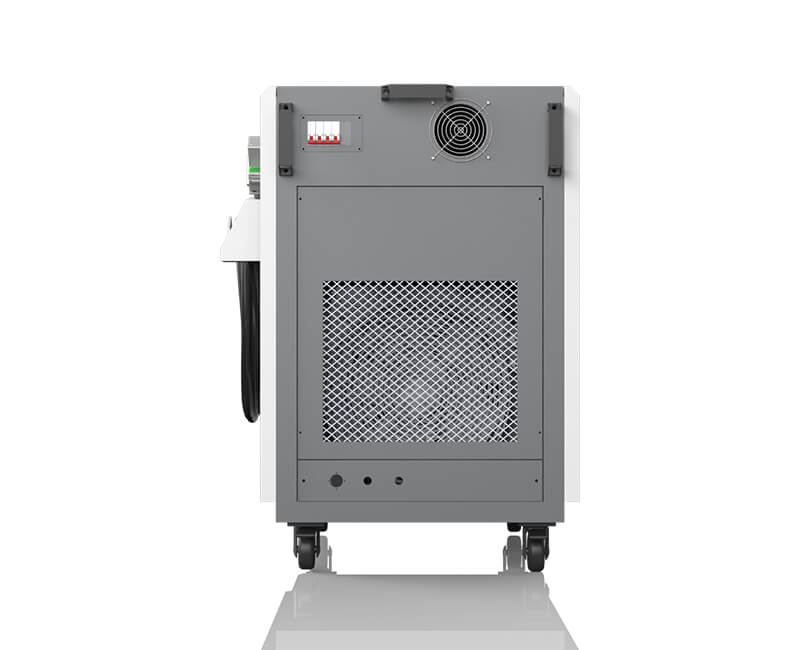

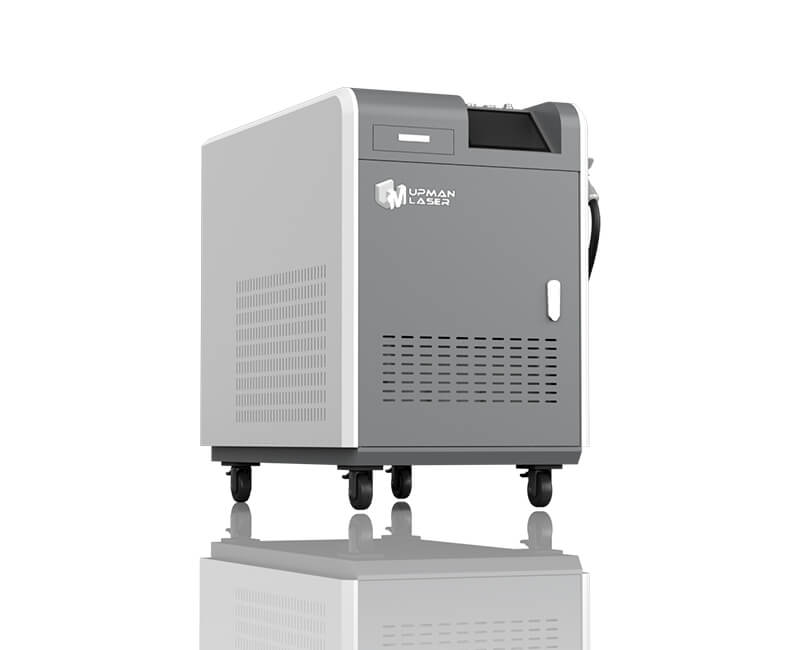

Handheld Fiber Laser Cleaning Machine
With laser power: 1.5kw/2kw/3kw.
Laser cleaning machines are innovative tools designed to remove contaminants, rust, paint, and other surface coatings from materials with unparalleled precision and efficiency. This technology utilizes high-energy laser beams to ablate unwanted layers without damaging the underlying material, making it a preferred choice for industries requiring eco-friendly and precise cleaning solutions.
Key Features
- lNon-Destructive Cleaning: Removes coatings without harming the base material.
- lEnvironmentally Friendly: No chemicals, solvents, or abrasive materials are needed, reducing waste and pollution.
- lPrecision and Control: The laser beam can be finely tuned to target specific areas or layers.
- lVersatility: Effective on a wide range of materials, including metals, plastics, and ceramics.
Low Maintenance: Minimal consumables and maintenance compared to traditional cleaning methods.

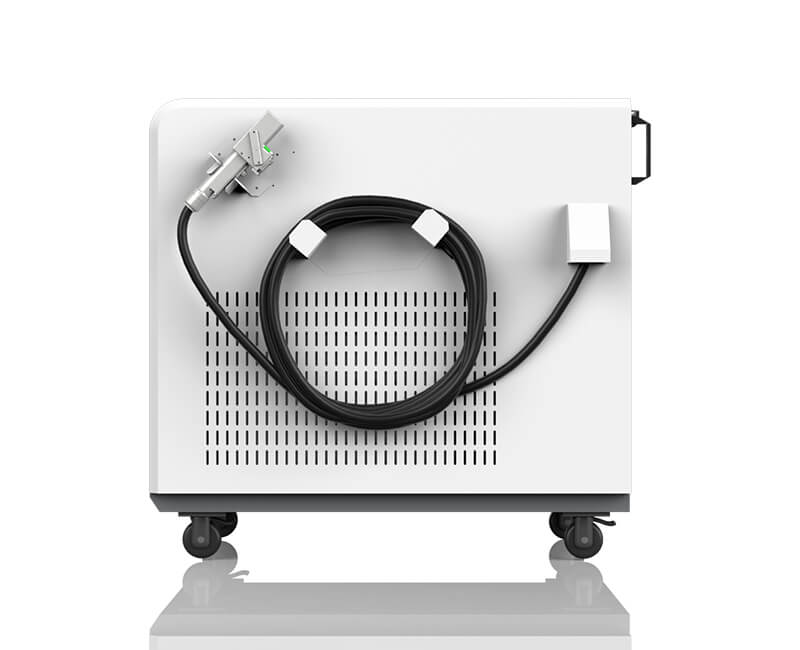

Flexible Handle Cleaning Gun
The cleaninghead is well sealed, which protects the internal components from dust, greatly extending the life of the product.
- Protection lens,easy replacement of protection lens.
- High quality optical lens, compatible with power up to 3000W.
The scientific cooling system design can effectively control
the working temperature of the product and ensure the stability of long-term use.
Laser source
- Save energy and protect environment
- Photoelectric conversion rate is up to 30-35%
- Low electric power consumption.Almost free maintenance
Water Chiller
Specially made for the matching laser welding machine, small size, perfect matching machine cabinet.
- Intelligent one-button control system. Easy to use error code query system.
- Integrated design, easy to maintain and repair.
- Stable and reliable performance, low failure rate, energy saving.
Use distilled water.

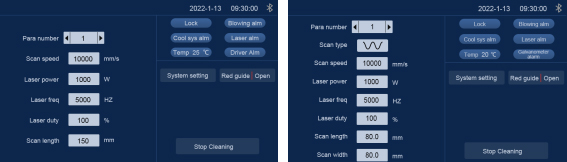

User-friendly Operation
-Easy control all parameter in touching screen.
-Covers multiple languages: English, German, French, Spanish, Portuguese, Arabic, Czech, etc. 20 languages.
Technical Parameters
| Model | UM1500C | UM2000C | UM3000C |
| Laser Power | 1500W | 2000W | 3000W |
| Laser Wavelength | 1064±10nm | ||
| Max Cleaning Width | 300mm | ||
| Operating Environment temperature | 10-40℃ | ||
| Auxiliary Gas | Pure compressed gas | ||
| Cooling Method | Water chiller | ||
| Power Supply | 380V/50HZ/3 Phase | ||
| Machine Size | 1450*800*1200mm | ||
Layout

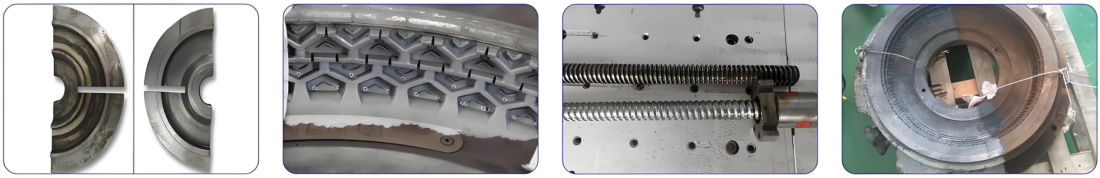

Sample display
Application
Parts cleaning
Mould cleaning
Surface preparation
Removal of marine debris
Tire cleaning
Equipment cleaning
